OMG H2-MI-CF11S Helicopter Rotor Mini Servo

$38.40 $76.79

num:

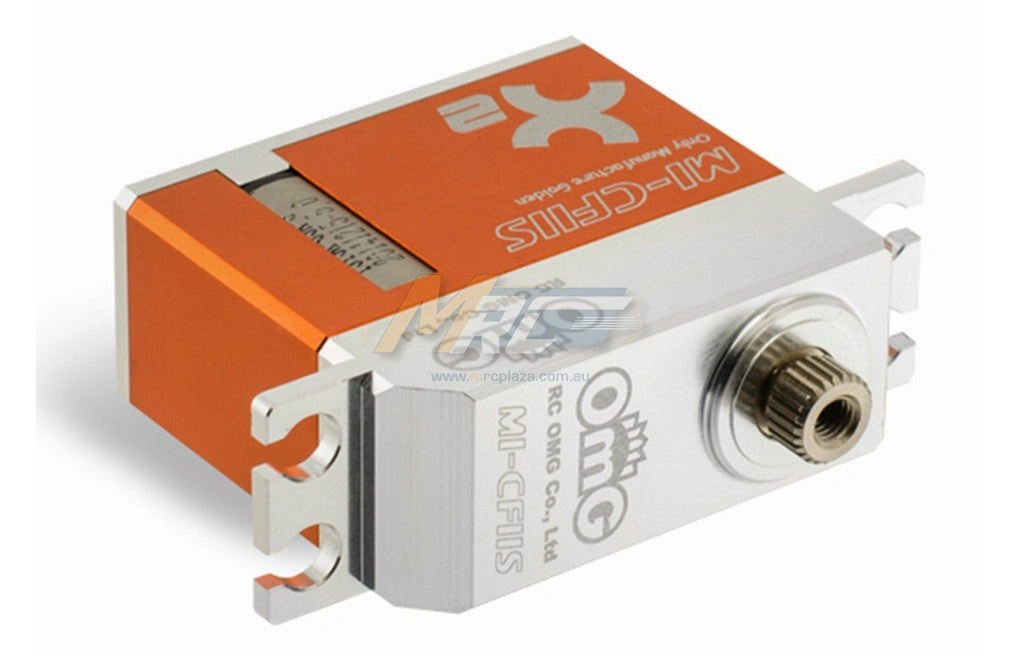

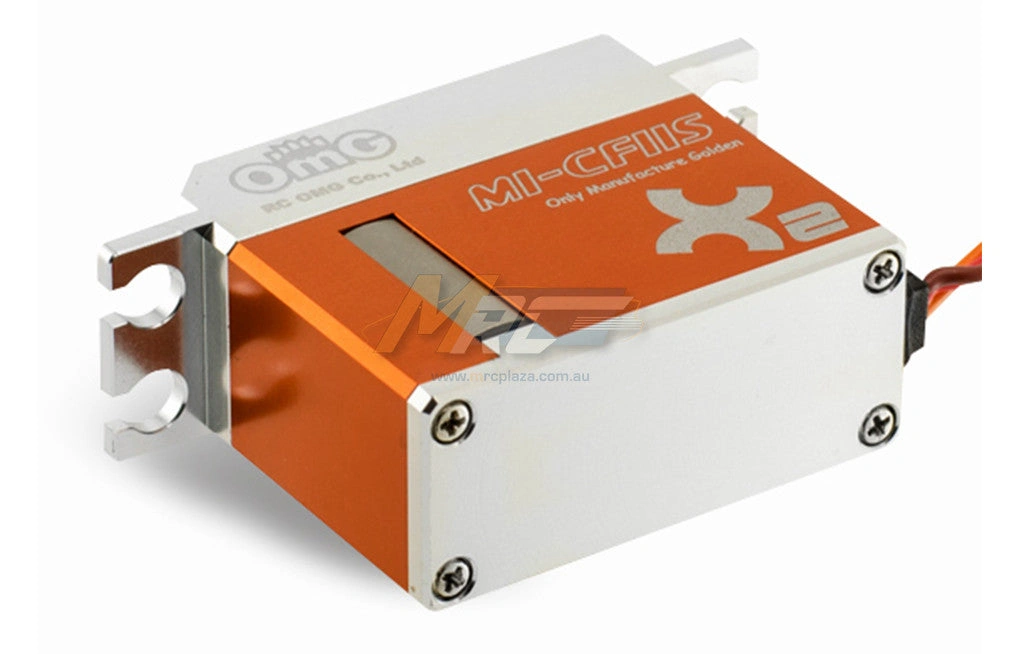

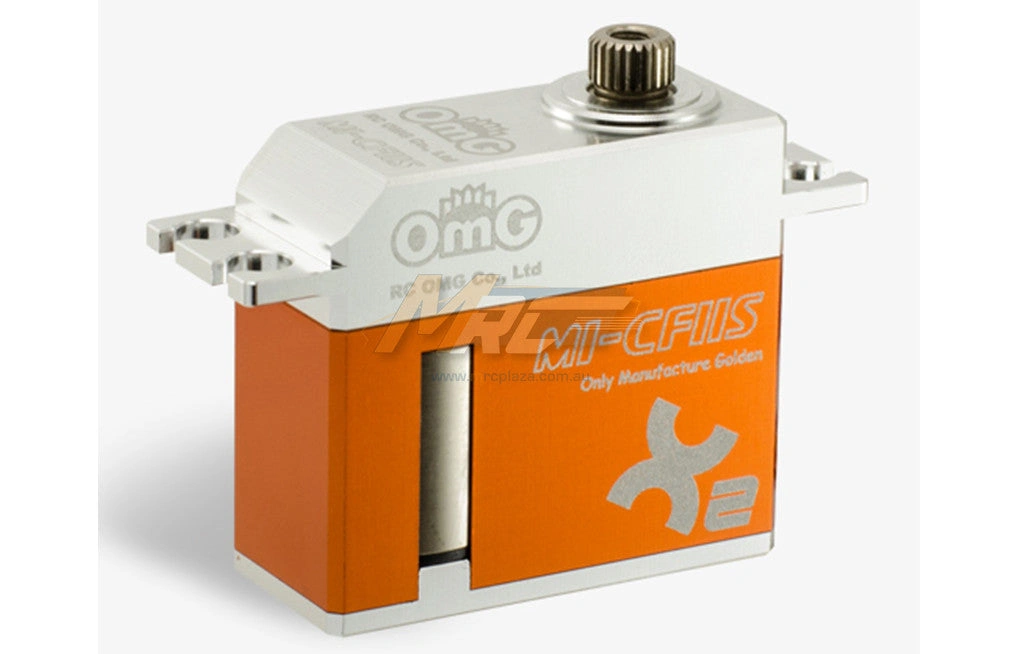

OMG H2-MI-CF11S Class 500 Helicopter Rotor Mini Servo

Feature:

Specially designed to operate your class 500 helicopter cyclic with extreme precision by having the best combination of torque and speed
Reinforced titanium gears to ensure a low maintenance experience and resistance during crashes
Capable of running on voltages up to 8.4V
Quiet, fast, precise, durable and has minimal power consumption
Gears are titanium coated specially for superior endurance and durability

Specification:

Type: Digital
Operating Voltage Range: 6.0 - 8.4Volts DC
Bearing Type: Dual Ball Bearings
Speed (s/60°@6.0V/7.4V/8.4V): 0.08 / 0.07 / 0.065
Torque oz./in. (6.0V/7.4V/8.4V): 125 / 153 / 167
Torque kg./cm. (6.0V/7.4V/8.4V): 9 / 11 / 12
Size : 36 x 15.2 x 28.8mm
Weight: 35g
Motor Type: Coreless motor
Control System: +Pulse Width Control 1500µsec Neutral
Required Pulse: 3-5 Volt
Operating Temperature Range(℃): -10° - 50°
Idle Current (@6.0V/7.4V/8.4V): 20mA
No Load Running Current (6.0V/7.4V/8.4V): 80mA/100mA
Stall Current (6.0V/7.4V/8.4V): 2500mA/3200mA
Dead Band Width: 4µs
Potentiometer Type: Rotating(Max.220°)
Connector Wire Length: 7.08 in. / 300 mm. OMG wire
Connector Wire Gauge: 28 AWG
Connector Type: JR
Gear Type: Titanium gears
Frequency: 330Hz
Shaft: 5.9mm 25T

What is included:

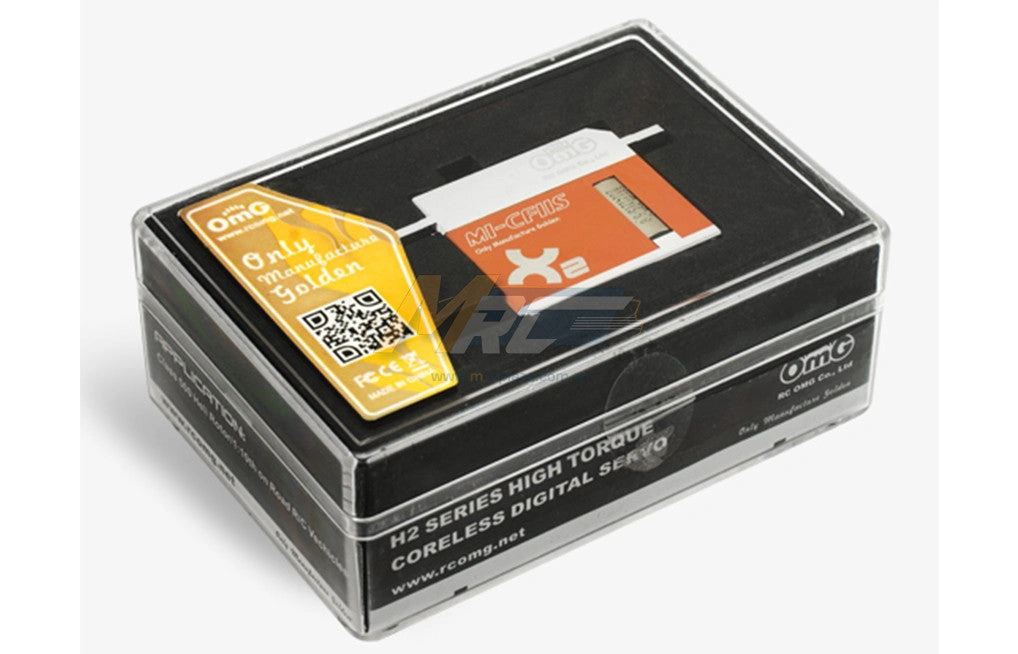

OMG H2-MI-CF11S Class 500 Helicopter Rotor Mini Servo (1 pc)
