Surpass Hobby 540PLUS V2 80A Drag Combo Set - Unleash Your RC Power!
Unleash your inner explorer with this extraordinary piece – a captivating blend of artistry and adventure, meticulously crafted to ignite your imagination and elevate your everyday. It’s more than just an object; it’s a portal to possibility.
$36.80
$73.59

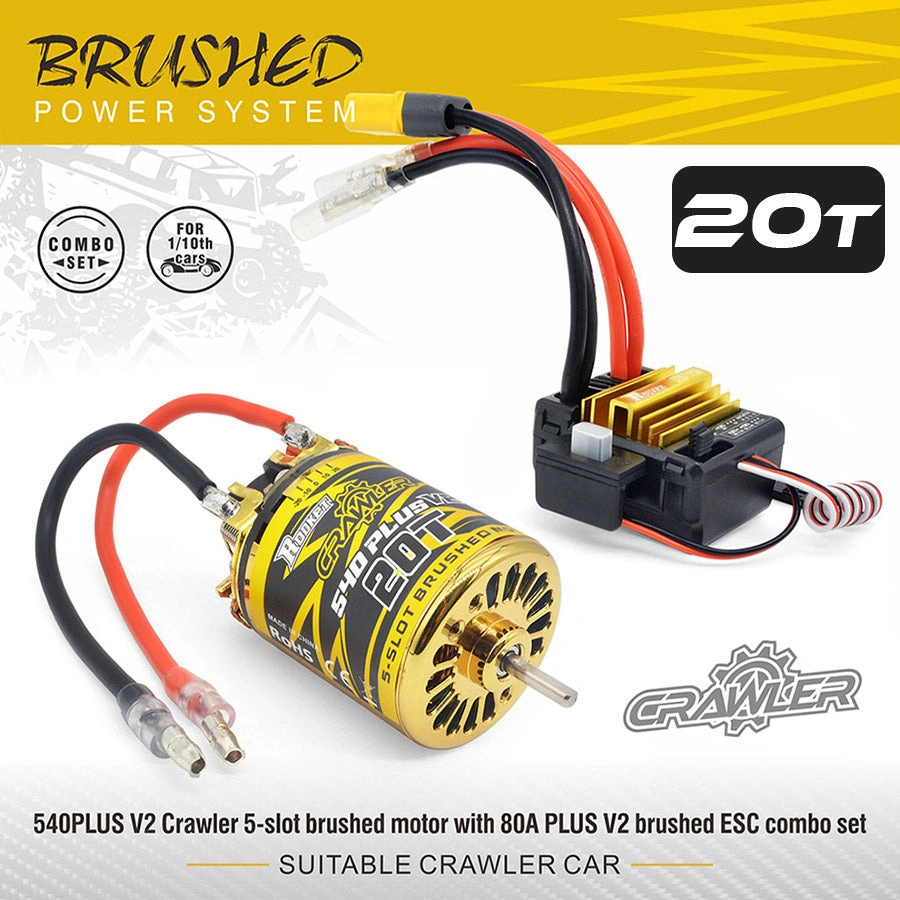

Surpass Hobby 540PLUS V2 80A Drag Combo Set 20T
Feature:
- Specially designed for RC Crawler aim for precise control.
- Precision measurement with high hardened steel cans & gold plating process.
- Super thin (0.35mm) imported silicon steel sheet stator.
- High current with high quality low resistance carbon brush from Japan.
- 24K gold-plated & low internal resistance terminal Solder Tabs.
- Super large precision balanced 5 slot skew rotor, stable, reliable with large torque.
- Equipped with double PCB board capacitors to effectively prevent interference and EMC certification approved.
- Removable / replaceable structure, easy to clean and maintain.

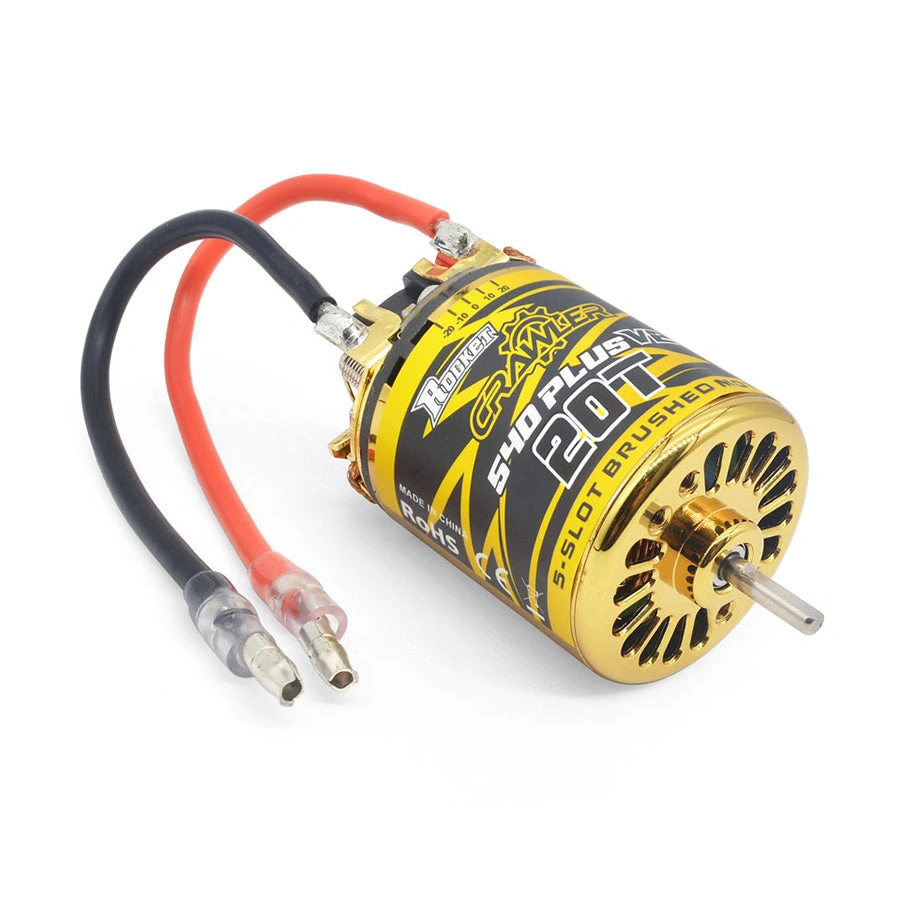

Motor Specification:
- Motor: 20T
- Operating Voltage: 7.4V
- No-load Current: <1.9A
- No-load RPM: 9500±12%RPM
- Plugging Current: 8.5-48A
- Torsion: ≥3365g.cm
- Turn: CCW
- Weight: 187g
- Shaft: ⌀3.175mm
ESC Specification:
- Motor Type: Brush motor
- Suitable Car: 1/10 Crawler
- Continue Current/Burst Current: 80A/320A
- Resistance: 0.0014ohm
- Battery: 2-3 cells LiPo; 4-9 cells NiMH
- BEC: 6.4V/7.4V switchable and 5A (switch mode)
- Dimension: 35 x 42 x 27mm
What is included:
- Surpass Hobby 540PLUS V2 80A Drag Combo Set 20T (1 set)
